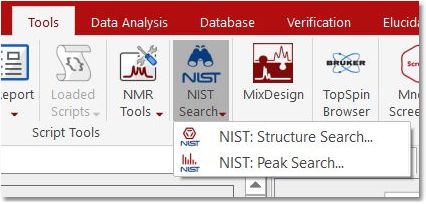

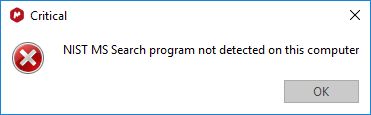

The "NIST" scripts (only for Windows) will allow you to search for molecular structures and peaks in you previous installed NIST17 Database. If you do not have it installed, you will get an error message:



nist_error

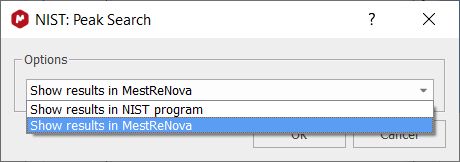

If you have NIST17 installed on your computer, you will be allowed to run peak searches:



NIST_peak_search1

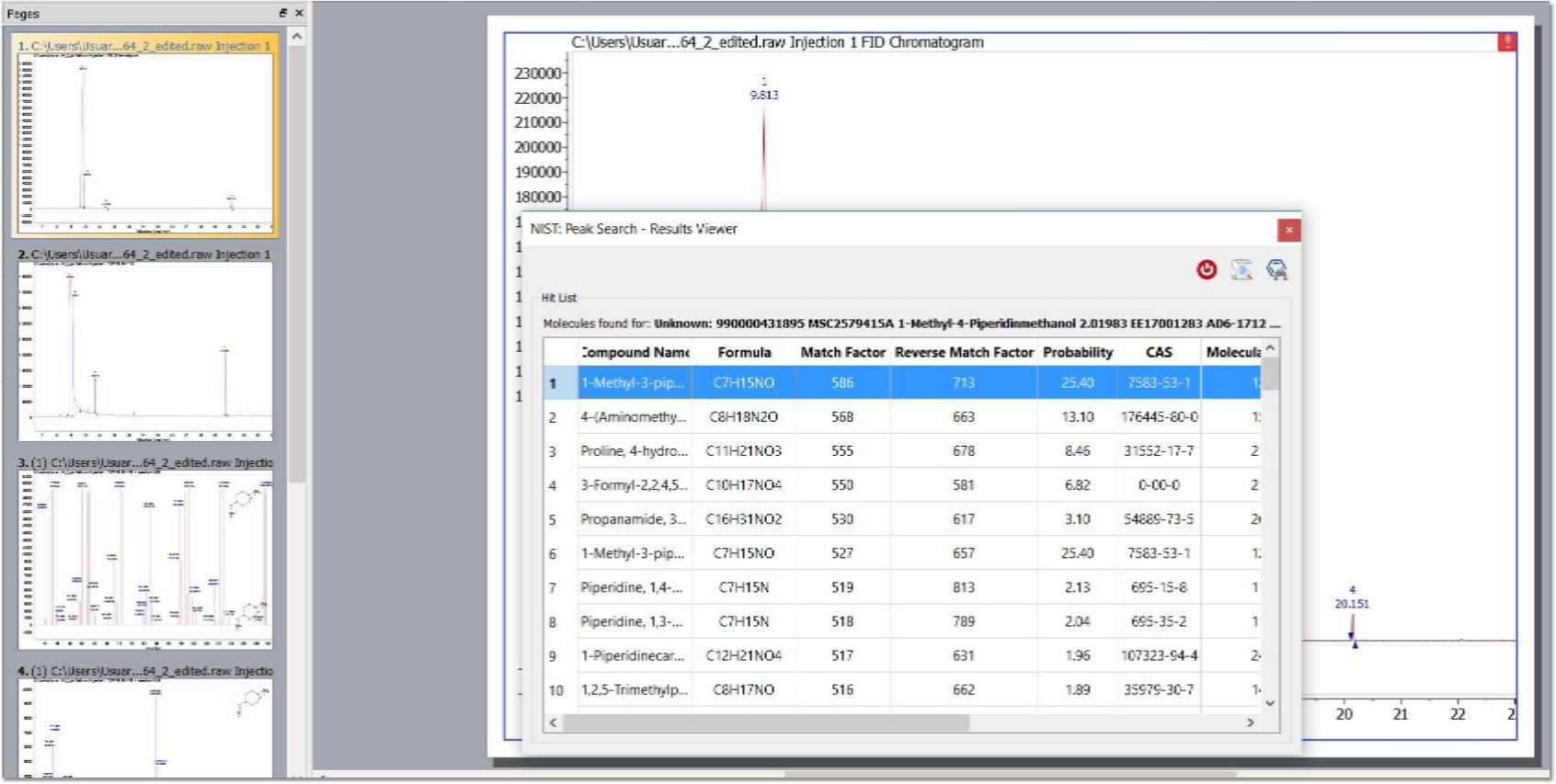

The results can be shown in Mnova or directly on NIST program:



NIST_peak_search

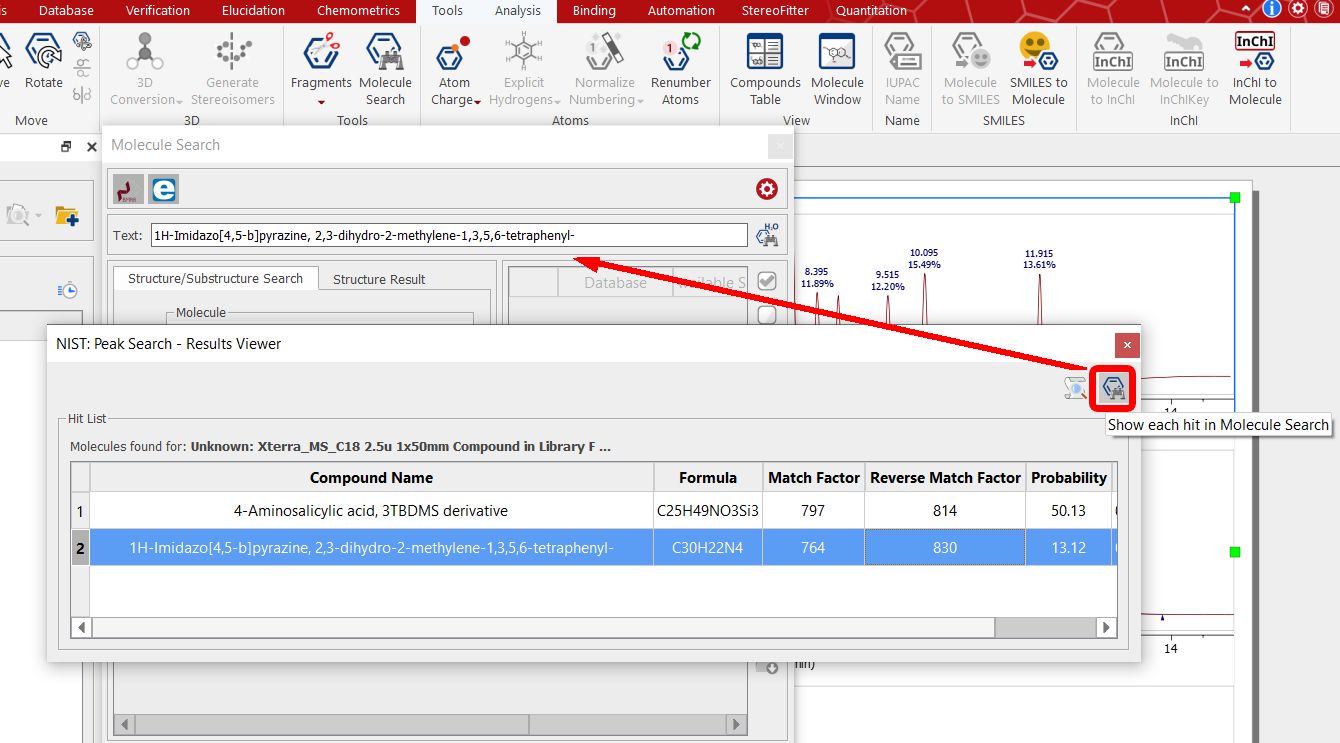

Once you have got the results, you will be able to search for the compounds into the BRMB and eMolecules databases (with the Molecule Search feature):



NIST_molecule_search
