Create custom fields

It is possible create custom text fields by using a layout template. Let´s see an example which you can download from this link

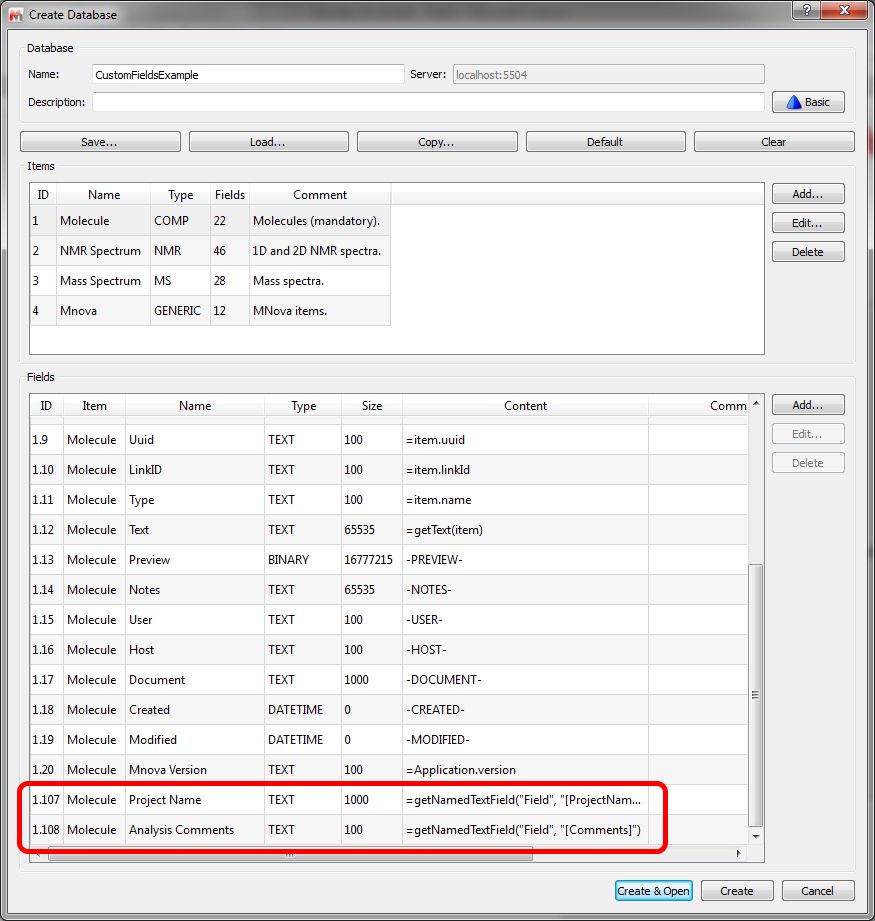

First of all, you will need to create a new Database with the new text fields. You can do it by following the menu 'Database/Create Database/Advanced/Load' and select the XML which is on the file that you downloaded above (or you can add the new text fields that you want). This will add two new text files ('Project Name' and 'Analysis Comments') to the Database. Click on the 'Create&open' button to generate the new Database:

Then, you will need to create a layout template (in the example the template is called "LayoutOrig.mnova".

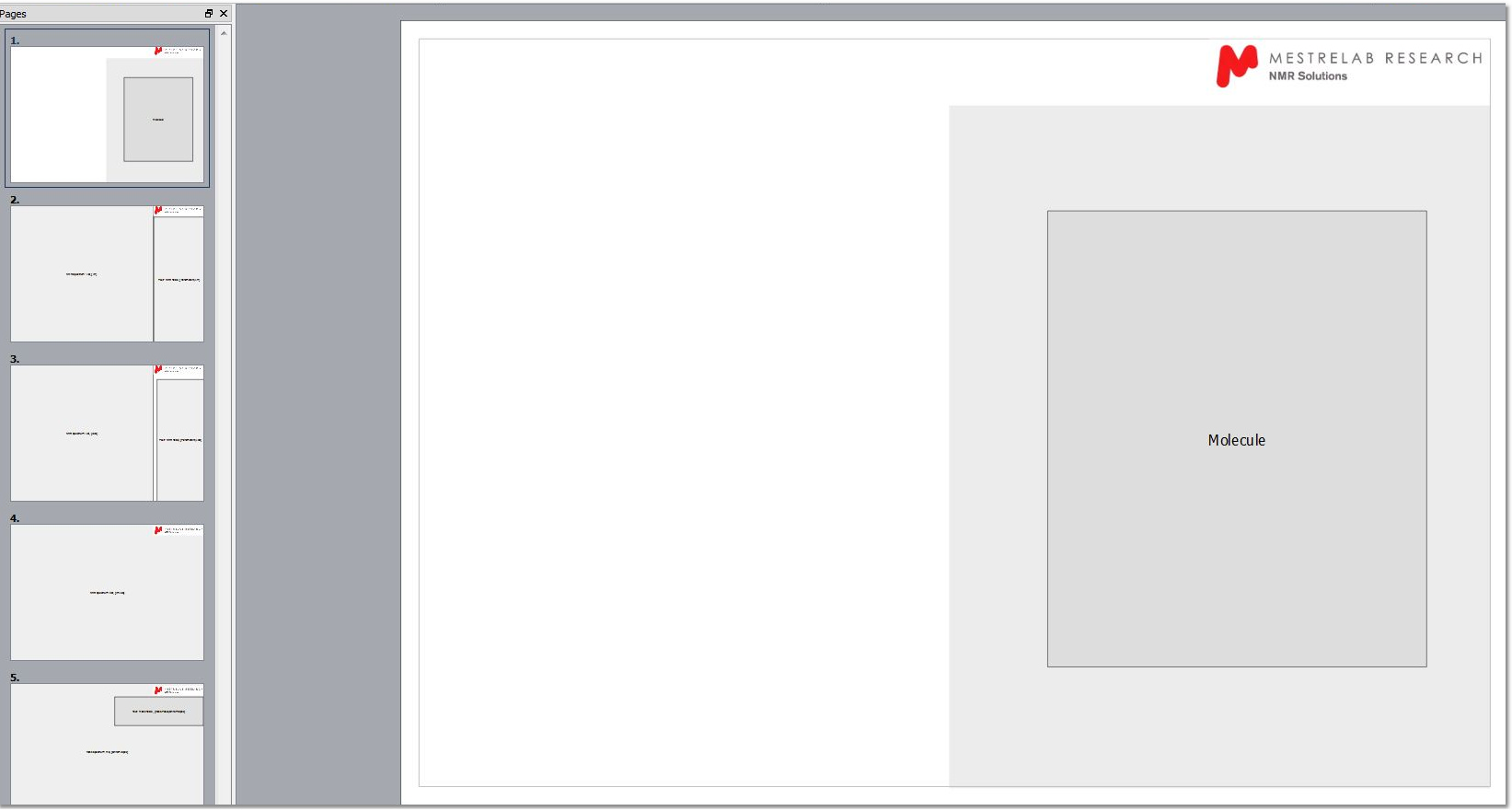

Here you can see a layout template with 5 pages (molecule, 1H-NMR, 13C-NMR, 2D-NMR and MS):

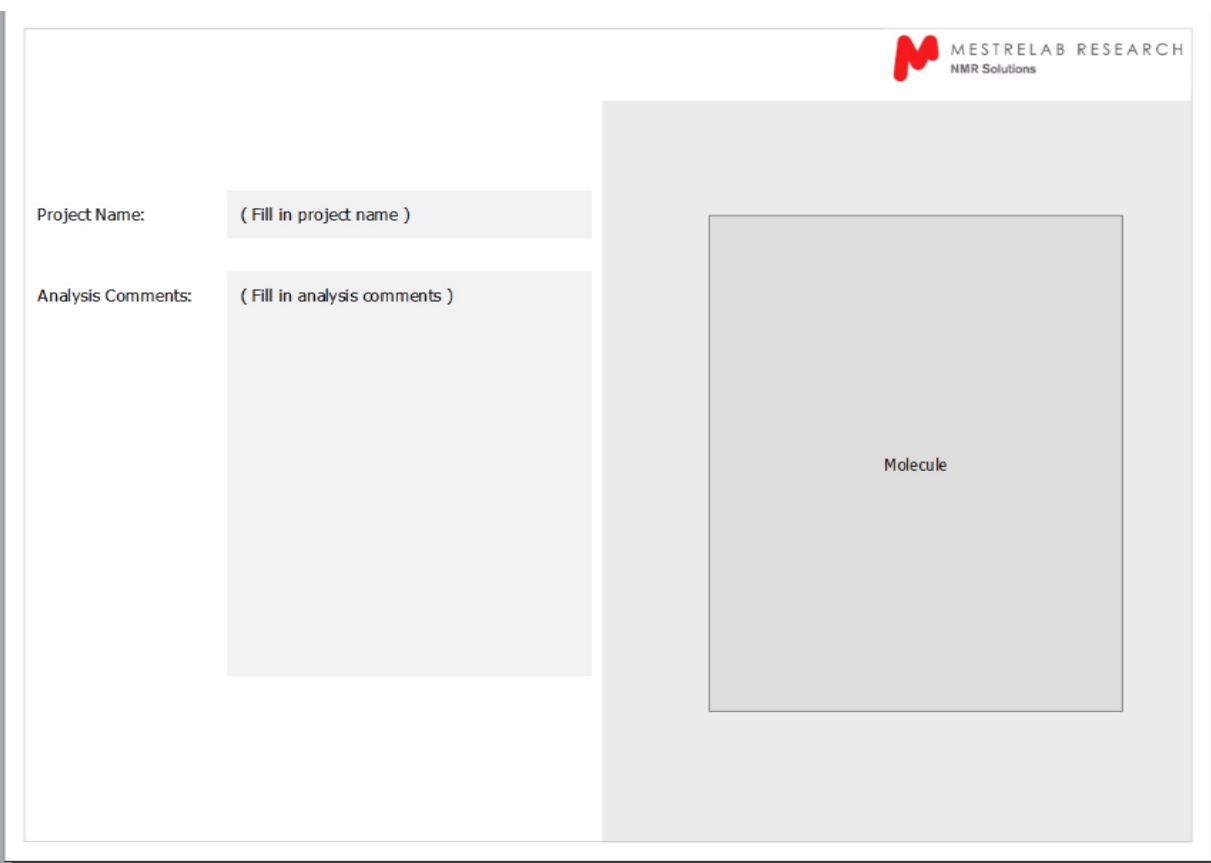

Then, run the script called "addNamedFields.qs". This will add two named text fields [ProjectName] and [Comments] to the layout:

Then save the results as "LayoutWithFields.mnova" by following the menu 'File/Save As'. Those text fields will have its own Properties, even you could add new text properties to the page items and edit them by selecting the 'Metadata' tab:

Finally apply the layout template over your datasets, fill the text fields manually and save the documents to the Database (by following the menu 'Database/Save').

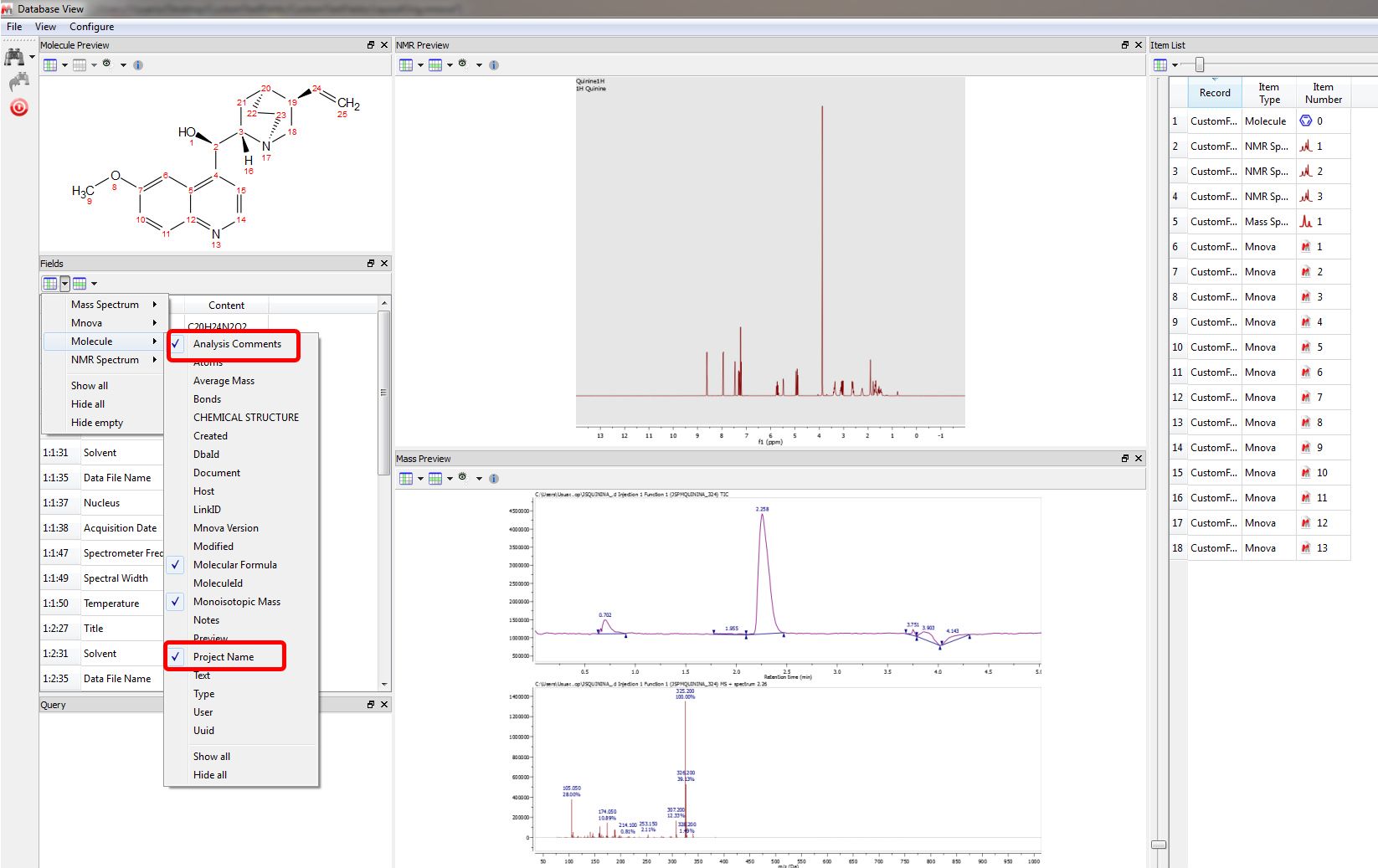

To display the new custom fields after a search, go to the DBBrowser and add the new fields to views as desired and save the configuration by following the menu "Configure/Save Settings As":

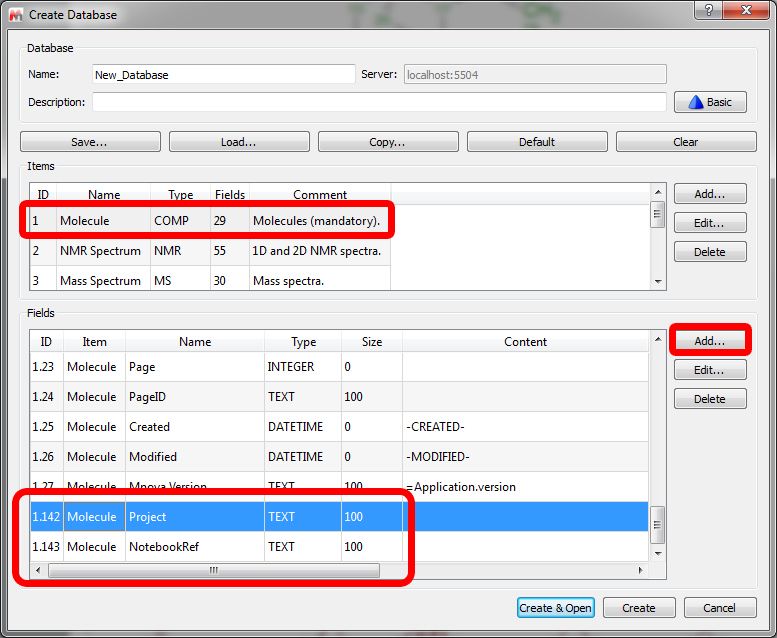

You can create mandatory fields in order to save them to the Database, You will find an example script called "dbMandatoryFieldsExample1.qs" into the examples installation folder of Mnova. Save this script into one of your 'Scripts directories' (File/Preferences/Scripting), restart Mnova and then create a new database with two added custom fields "Project" and "NotebookRef" in the Molecule item type:


Next, save any dataset to the new database and a dialog asking for the content of the mandatory fields will be shown with each save operation:

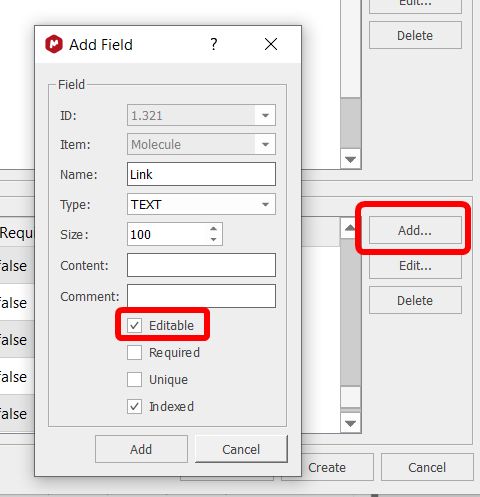

You can also include fields in the DB Browser with hyperlinks. To do it, make sure that you create a database with an editable TEXT field; for example, the "Link" field in the Molecule item.

Next, save some records in the database and open the DBBrowser to configure a widget to show the new column with the display mode as HTML:

Then, write the HTML hyperlink tag:

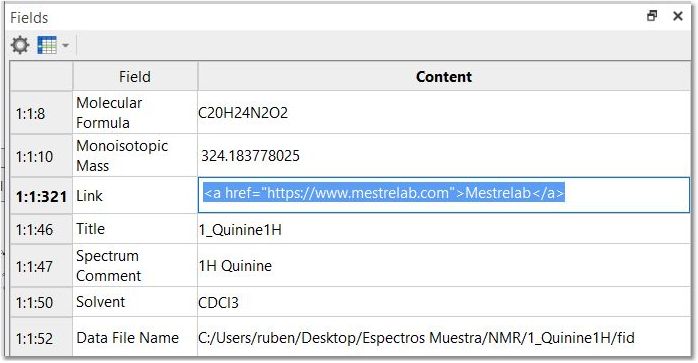

and you will get the expected hyperlink:
