Predict & Verify |
This chapter describes a new feature to validate molecular structures, which is based on the concurrent analysis of two simulated 1D (1H and 13C) NMR spectra and a real 2D NMR one-bond correlation spectrum, such as HMQC or HSQC (experiments which correlate the chemical shift of the proton with the chemical shift of the directly bonded carbon).
The procedure to apply a Visual Verification with Mnova is very easy, just load your HSQC or HMQC spectrum, and follow the menu: 'Prediction/Predict & verify/HSQC’ with the applicable molecular structure pasted on the spectral window as is shown in the pictures below:

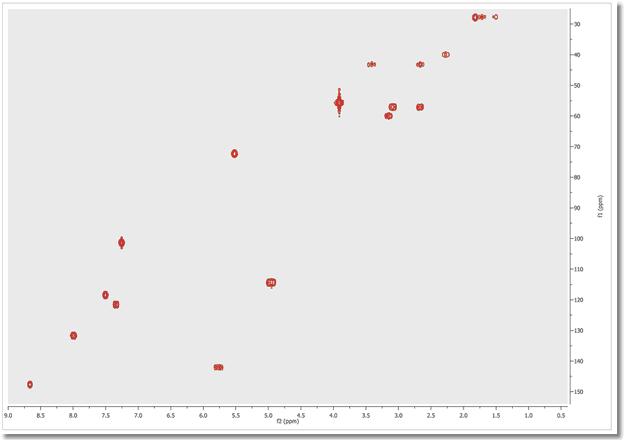

1st: Load the HSQC or the HMQC spectrum in Mnova:
2nd: Paste (or load) the applicable molecular structure. Bear in mind that molecular structures can be imported as a .mol file by simply using the ‘Open’ command exactly in the same way as this would be applied to a spectrum. Keep in mind that you are also able to copy & paste structures from ChemDraw, ChemSketch and IsisDraw.

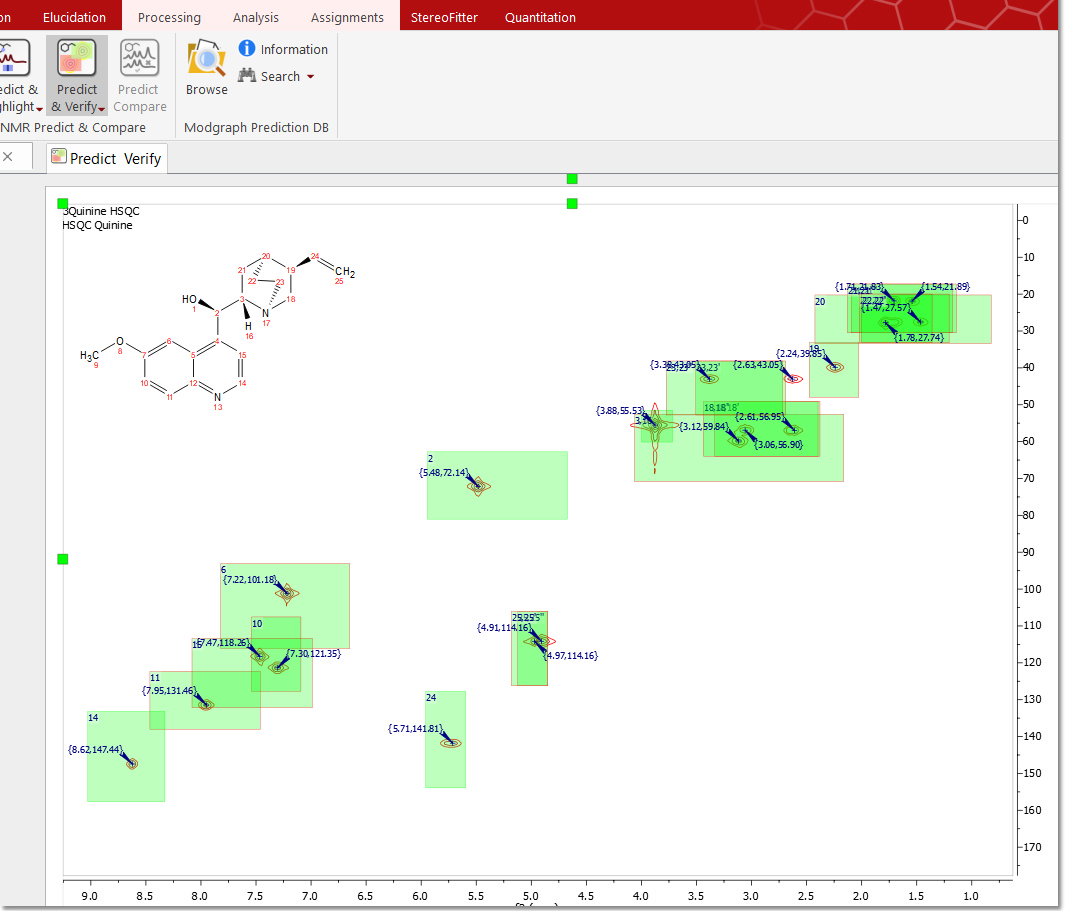

3rd: Follow the menu: ‘Prediction/Predict & Verify/HSQC’ to obtain the corresponding analysis:
The same feature can be applied by selecting the molecule in the Compounds Table.
As you can see in the picture above, green, yellow and red rectangles will be obtained in the analysis.

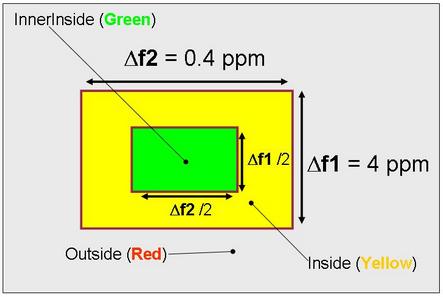

A green rectangle will appear when the simulated value fits with the experimental one (the experimental value falls within a rectangular window, drawn around the simulated value, with dimensions of 0.2 ppm along the proton dimension and 2 ppm along the carbon dimension). A yellow rectangle will be displayed when an experimental peak falls within a window which is between 0.2 and 0.4 ppm along the proton dimension and 2 and 4 ppm along the carbon dimension. Finally, the red rectangles are displayed when no experimental peak is found within the latter rectangle, with the simulated value at its center and dimensions of 0.4 ppm along the proton dimension and 4 ppm along the carbon dimension.
For example, if we have a real cross peak in the HSQC spectrum at (1.00, 10.0) ppm and a simulated value of (1.05, 10.2) ppm, then we shall obtain a green rectangle, because there is a experimental peak within the rectangle with a predicted peak at its center and sides of 0.2 ppm along the proton and 2 ppm along the carbon dimensions, which we will call ‘inner inside’. If we would have a simulated value of (1.25, 11.0) ppm, then we would get a yellow rectangle drawn around the simulated value, as the experimental peak values would fall outside the ‘inner inside’ but within the area, drawn around the predicted peak, with sides of 0.4 ppm along the proton dimension. In this case the carbon simulation would be fine, but we would get a yellow rectangle due to the deviation in the proton prediction. If the simulated value for this cross peak was (1.41, 15.0) ppm, then we would obtain a red rectangle.

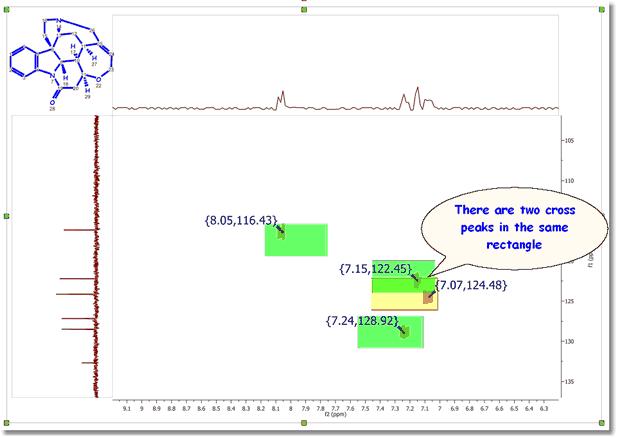

Finally, we shall get a rectangle with a red border when more than one experimental cross peak falls within the green or yellow rectangles drawn around a predicted peak, as is shown in the picture below:
The user also has the ability to display any combination of rectangles, such as only red rectangles or green and yellow rectangles, for example. These options are available from the ‘Prediction/Predict & Verify’ menu.
Bear in mind that the results reported by visual verification will depend on the prediction algorithm used in the spectral simulation.
|
